梯形螺纹丝杆螺母WFLM和JFLM

时间:2017-12-02  浏览:0次



梯形螺纹丝杆螺母WFLM和JFLM
梯形螺纹丝杆螺母WFLM和JFLM
梯形螺纹丝杆螺母WFLM和JFLM

无铅——符合(RoHS) 2002/95/EG标准



梯形丝杠螺母 - WFLM

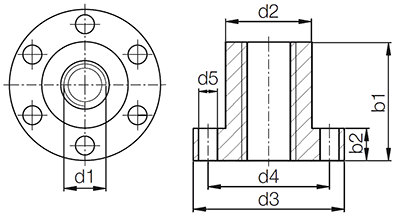

尺寸 [毫米]
订单号 iglidur®
材料
表面接触面积
的比例[mm²]
d2 d3 d4 d5 b1 b2 螺纹
d1 x P
最大静载荷
F轴 [N]
 WFLM-2525TR10X2 - 353 25 42 34 5 25 10 TR10X2 1767
 WFLM-2835TR12X3 - 577 28 48 38 6 35 12 TR12X3 2886
 WFLM-2835TR14X4 - 660 28 48 38 6 35 12 TR14X4 3299
 WFLM-2835TR16X4 - 770 28 48 38 6 35 12 TR16X4 3848
 WFLM-2835TR18X4 - 880 28 48 38 6 35 12 TR18X4 4398
 WFLM-3244TR20X4 - 1244 32 55 45 7 44 12 TR20X4 6220
 WFLM-3244TR24X5 - 1486 32 55 45 7 44 12 TR24X5 7430
 WFLM-3846TR26X5 - 1698 38 62 50 7 46 14 TR26X5 6320
 WFLM-3846TR28X5 (1) - 1843 38 62 50 7 46 14 TR28X5 4560
 WFLM-3846TR30X6 (1) - 1951 38 62 50 7 46 14 TR30X6 3576
 JFLM-2525TR10X2 - 353 25 42 34 5 25 10 TR10X2 1414
 JFLM-2835TR12X3 - 577 28 48 38 6 35 12 TR12X3 2309
 JFLM-2835TR14X4 - 660 28 48 38 6 35 12 TR14X4 2639
 JFLM-2835TR16X4 - 770 28 48 38 6 35 12 TR16X4 3079
 JFLM-2835TR18X4 - 880 28 48 38 6 35 12 TR18X4 3519
 JFLM-3244TR20X4 - 1244 32 55 45 7 44 12 TR20X4 4976
 JFLM-3244TR24X5 - 1486 32 55 45 7 44 12 TR24X5 5944
 JFLM-3846TR26X5 - 1698 38 62 50 7 46 14 TR26X5 6320
 JFLM-3846TR28X5 - 1843 38 62 50 7 46 14 TR28X5 4560
 JFLM-3846TR30X6 (1) - 1951 38 62 50 7 46 14 TR30X6 3576
 JFLM-2020TR8X1.5 - 228 20 36 28 4 20 8 TR08X1.5 911
 JFLM-4546TR30X6 - 1951 45 70 - 7 46 16 - 7804
 WFLM-2020TR8X1.5 - 228 20 36 28 4 20 8 TR08X1.5 1139
 WFLM-4546TR30X6 - 1951 45 70 58 7 46 16 - 9755
 WFLM-2835TR16X2 - 825 28 48 38 6 35 12 TR16X2 4123
 WFLM-2835TR14X3 - 687 28 48 38 6 35 12 TR14X3 3436
 WFLM-2525TR10X3 - 334 25 42 34 5 25 10 TR10X3 1669
 A180FLM-2020TR8X1.5 - 228 20 36 28 4 20 8 TR08X1.5 797
 A180FLM-3846TR30X6 - 1951 38 62 50 7 46 14 TR30X6 3576
 A180FLM-4546TR30X6 - 1951 45 70 58 7 46 16 - 6828
 A180FLM-3846TR28X5 - 1843 38 62 50 7 46 14 TR28X5 4560
 A180FLM-3846TR26X5 - 1698 38 62 50 7 46 14 TR26X5 6320
 A180FLM-3244TR24X5 - 1486 32 55 45 7 44 12 TR24X5 5201
 A180FLM-3244TR20X4 - 1244 32 55 45 7 44 12 TR20X4 4354
 A180FLM-2835TR18X4 - 880 28 48 38 6 35 12 TR18X4 3079
 A180FLM-2835TR16X4 - 770 28 48 38 6 35 12 TR16X4 2694
 A180FLM-2835TR16X2 - 825 28 48 38 6 35 12 TR16X2 2886
 A180FLM-2835TR14X4 - 660 28 48 38 6 35 12 TR14X4 2309
 A180FLM-2835TR14X3 - 687 28 48 38 6 35 12 TR14X3 2405
 A180FLM-2835TR12X3 - 577 28 48 38 6 35 12 TR12X3 2020
 A180FLM-2525TR10X3 - 334 25 42 34 5 25 10 TR10X3 1168
 A180FLM-2525TR10X2 - 353 25 42 34 5 25 10 TR10X2 1237
 JFLM-6770TR40X7 - 4013 67 95 81 7 70 25 TR40X7 16054
 JFLM-6770TR36X6 - 3629 67 95 81 7 70 25 TR36X6 14514
 JFLM-2835TR16X2 - 825 28 48 38 6 35 12 TR16X2 3299
 JFLM-2835TR14X3 - 687 28 48 38 6 35 12 TR14X3 2749
 JFLM-2525TR10X3 - 334 25 42 34 5 25 10 TR10X3 1335
 J350FLM-2020TR8X1.5 - 228 20 36 28 4 20 8 TR08X1.5 683
 J350FLM-3244TR24X5 - 1486 32 55 45 7 44 12 TR24X5 4458
 J350FLM-3244TR20X4 - 1244 32 55 45 7 44 12 TR20X4 3732
 J350FLM-2835TR18X4 - 880 28 48 38 6 35 12 TR18X4 2639
 J350FLM-2835TR16X4 - 770 28 48 38 6 35 12 TR16X4 2309
 J350FLM-2835TR16X2 - 825 28 48 38 6 35 12 TR16X2 2474
 J350FLM-2835TR14X4 - 660 28 48 38 6 35 12 TR14X4 1979
 J350FLM-2835TR14X3 - 687 28 48 38 6 35 12 TR14X3 2062
 J350FLM-2835TR12X3 - 577 28 48 38 6 35 12 TR12X3 1732
 J350FLM-2525TR10X3 - 334 25 42 34 5 25 10 TR10X3 1001
 J350FLM-2525TR10X2 - 353 25 42 34 5 25 10 TR10X2 1060
 RFLM-2020TR8X1.5 - 228 13 25 28 3,2 15 5 TR6X2P1 456
 RFLM-3244TR24X5 - 1486 32 55 45 7 44 12 TR24X5 2972
 RFLM-3244TR20X4 - 1244 32 55 45 7 44 12 TR20X8P4 2488
 RFLM-2835TR18X4 - 880 32 55 38 7 44 12 TR20X4 1759
 RFLM-2835TR16X4 - 770 28 48 38 6 35 12 TR18X8P4 1539
 RFLM-2835TR16X2 - 825 28 48 38 6 35 12 TR18X4 1649
 RFLM-2835TR14X4 - 660 28 48 38 6 35 12 TR16X8P4 1319
 RFLM-2835TR14X3 - 687 28 48 38 6 35 12 TR16X4 1374
 RFLM-2835TR12X3 - 577 28 48 38 6 35 12 TR16X2 1155
 RFLM-2525TR10X3 - 334 28 48 38 6 35 12 TR14X4 668
 RFLM-2525TR10X2 - 353 28 48 38 6 35 12 TR14X4 707
 RFLM-3846TR26X5 - 1698 38 - - - 46 14 - 4560
 RFLM-3846TR28X5 - 1843 38 - - - 46 14 - 4560
 RFLM-3846TR30X6 - 1951 38 - - - 46 14 - 3576
 JFLM-4546TR32X6 - 2095 45 - - - 46 16 - -
 A180FLM-4546TR32X6 - 2095 45 - - - 46 16 - -
(1) 因螺母几何结构而减少的轴向负载
