drylin® - 梯形导向螺母 - WSRM

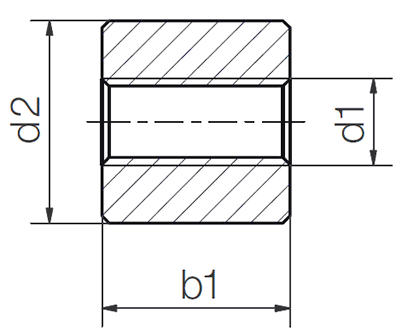

尺寸 [毫米],短设计
订单号 表面接触面积
的比例[mm²]
d2 b1 螺纹
d1 x P
最大静载荷
F轴 [N]
梯形丝杠螺母WSRM iglidurW300材料 WSRM-6060TR32X6 3134 60 60 - 15669
梯形丝杠螺母WSRM iglidurW300材料 WSRM-3028TR14X3 550 30 28 - 2749
 WSRM-1418TR8X1.5 205 14 18 TR8X1.5 500
 WSRM-1812TR8X1.5 137 18 12 TR8X1.5 683
 WSRM-2215TR10X2 212 22 15 TR10X2 1060
 WSRM-2215TR10X3 200 22 15 TR10X3 1001
 WSRM-2220TR10X2 283 22 20 TR10X2 1414
 WSRM-2220TR10X3 267 22 20 TR10X3 1335
 WSRM-2618TR12X3 297 26 18 TR12X3 1484
 WSRM-2624TR12X3 396 26 24 TR12X3 1979
 WSRM-3021TR14X4 396 30 21 TR14X4 1979
 WSRM-3024TR16X4 528 30 24 TR16X4 2639
 WSRM-3025TR20X4 707 30 25 TR20X4 3534
 WSRM-3027TR18X4 679 30 27 TR18X4 2362
 WSRM-3028TR14X4 528 30 28 TR14X4 2639
 WSRM-3624TR16X2 565 36 24 TR16X2 2827
 WSRM-3624TR16X4 528 36 24 TR16X4 2639
 WSRM-3632TR16X2 754 36 32 TR16X2 3770
 WSRM-3632TR16X4 704 36 32 TR16X4 3519
 WSRM-4027TR18X4 679 40 27 TR18X4 3393
 WSRM-4036TR18X4 905 40 36 TR18X4 4524
 WSRM-4530TR20X4 848 45 30 - 4241
 WSRM-4540TR20X4 1131 45 40 - 5655
 WSRM-5036TR24X5 1216 50 36 - 6079
 WSRM-5039TR26X5 1440 50 39 - 7198
 WSRM-5048TR24X5 1621 50 48 - 8105
 WSRM-5052TR26X5 1920 50 52 - 9598
 WSRM-6042TR28X5 1682 60 42 - 8412
 WSRM-6045TR30X6 1909 60 45 - 9543
 WSRM-6056TR28X5 2243 60 56 - 11215
 WSRM-6060TR30X6 2545 60 60 - 12723
 WSRM-7572TR36X6 3732 75 72 - 18661
 WSRM-7680TR40X7 4587 76 80 - 22934



尺寸 [毫米],长设计
订单号 表面接触面积
的比例[mm²]
d2 b1 螺纹
d1 x P
最大静载荷
F轴 [N]

 WSRM-2220TR10X2 283 22 20 TR10X2 1414 一经要求
 WSRM-2220TR10X3 267 22 20 TR10X3 1335 一经要求
 WSRM-2624TR12X3 396 26 24 TR12X3 1979 一经要求
 WSRM-3028TR14X4 528 30 28 TR14X4 2639 一经要求
 WSRM-3632TR16X2 754 36 32 TR16X2 3770 一经要求
 WSRM-3632TR16X4 704 36 32 TR16X4 3519 一经要求
 WSRM-4036TR18X4 905 40 36 TR18X4 4524 一经要求

drylin® - 梯形丝杠螺母 - JSRM iglidur® J材料

梯形丝杠螺母WSRM iglidurW300材料
梯形丝杠螺母WSRM iglidurW300材料

梯形丝杠螺母 - JSRM


尺寸 [mm], 长型
订单号 表面接触面积
的比例[mm²]
d2 b1 螺纹
d1 x P
最大静载荷
F轴 [N]
 JSRM-1418TR8X1.5 205 14 18 TR08X1.5 500
 JSRM-1812TR8X1.5 137 18 12 TR08X1.5 547
 JSRM-2215TR10X2 212 22 15 TR10X2 848
 JSRM-2215TR10X3 200 22 15 TR10X3 801
 JSRM-2220TR10X2 283 22 20 TR10X2 1131
 JSRM-2220TR10X3 267 22 20 TR10X3 1068
 JSRM-2618TR12X3 297 26 18 TR12X3 1188
 JSRM-2624TR12X3 396 26 24 TR12X3 1583
 JSRM-3021TR14X4 396 30 21 TR14X4 1583
 JSRM-3024TR16X4 528 30 24 TR16X4 2111
 JSRM-3025TR20X4 707 30 25 TR20X4 2060
 JSRM-3027TR18X4 679 30 27 TR18X4 2362
 JSRM-3028TR14X3 550 30 24 TR14X3 2199
 JSRM-3028TR14X4 528 30 28 TR14X4 2111
 JSRM-3624TR16X2 565 36 24 TR16X2 2262
 JSRM-3624TR16X4 528 36 24 TR16X4 2111
 JSRM-3632TR16X2 754 36 32 TR16X2 3016
 JSRM-3632TR16X4 704 36 32 TR16X4 2815
 JSRM-4027TR18X4 679 40 27 TR18X4 2714
 JSRM-4036TR18X4 905 40 36 TR18X4 3619
 JSRM-4530TR20X4 848 45 30 TR20X4 3393
 JSRM-4540TR20X4 1131 45 40 TR20X4 4524
 JSRM-5036TR24X5 1216 50 36 TR24X5 4863
 JSRM-5039TR26X5 1440 50 39 TR26X5 5759
 JSRM-5048TR24X5 1621 50 48 TR24X5 6484
 JSRM-5052TR26X5 1920 50 52 TR26X5 7678
 JSRM-6042TR28X5 1682 60 40 TR28X5 6729
 JSRM-6045TR30X6 1909 60 45 TR30X6 7634
 JSRM-6056TR28X5 2243 60 56 TR28X5 8972
 JSRM-6060TR30X6 2545 60 60 TR30X6 10179
 JSRM-6060TR32X6 3134 60 60 TR32X6 12535
 JSRM-7572TR36X6 3732 75 72 TR36X6 14929
 JSRM-7680TR40X7 4587 76 80 TR40X7 18347
 JSRM-90100TR50X8 7226 90 100 TR50X8 28903

drylin® - 梯形丝杠螺母 - J350RM iglidur® J350材料

梯形丝杠螺母WSRM iglidurW300材料
梯形丝杠螺母WSRM iglidurW300材料

梯形丝杠螺母 - J350SRM


尺寸 [毫米]
订单号 表面接触面积
的比例[mm²]
d2 b1 螺纹
d1 x P
最大静载荷
F轴 [N]
 J350SRM-1418TR8X1.5 205 14 18 TR08X1.5 500
 J350SRM-1812TR8X1.5 137 12 18 TR08X1.5 410
 J350SRM-2215TR10X2 283 22 15 TR10X2 636
 J350SRM-2215TR10X3 200 22 15 TR10X3 801
 J350SRM-2220TR10X2 212 22 20 TR10X2 848
 J350SRM-2220TR10X3 200 22 20 TR10X3 801
 J350SRM-2618TR12X3 297 26 18 TR12X3 891
 J350SRM-2624TR12X3 396 26 24 TR12X3 1188
 J350SRM-3021TR14X4 396 30 21 TR14X4 1583
 J350SRM-3024TR16X4 528 30 24 TR16X4 1583
 J350SRM-3025TR20X4 707 30 25 TR20X4 2121
 J350SRM-3027TR18X4 679 30 27 TR18X4 2362
梯形丝杠螺母WSRM iglidurW300材料 J350SRM-3028TR14X3 550 30 28 - 1649
 J350SRM-3028TR14X4 528 30 28 TR14X4 1583
 J350SRM-3624TR16X2 565 36 24 TR16X2 1696
 J350SRM-3624TR16X4 528 36 24 TR16X4 1583
 J350SRM-3632TR16X2 754 36 32 TR16X2 2262
 J350SRM-3632TR16X4 528 36 32 TR16X4 2111
 J350SRM-4027TR18X4 679 40 27 TR18X4 2036
 J350SRM-4036TR18X4 905 40 36 TR18X4 2714
 J350SRM-4530TR20X4 848 45 30 TR20X4 2545
 J350SRM-4540TR20X4 1131 45 40 TR20X4 3393
 J350SRM-5036TR24X5 1216 50 36 - 3647
 J350SRM-5039TR26X5 1440 50 39 - 4319
 J350SRM-5048TR24X5 1621 50 48 TR24X5 4863
 J350SRM-5052TR26X5 1920 50 52 TR26X5 5759
梯形丝杠螺母WSRM iglidurW300材料 J350SRM-6042TR28X5 1682 60 42 - 6729
 J350SRM-6045TR30X6 1909 60 45 - 5726
 J350SRM-6056TR28X5 2243 60 56 TR28X5 6729
 J350SRM-6060TR30X6 2545 60 60 TR30X6 7634
梯形丝杠螺母WSRM iglidurW300材料 J350SRM-6060TR32X6 3134 60 60 - 9401
梯形丝杠螺母WSRM iglidurW300材料 J350SRM-7572TR36X6 3732 75 72 - 0
梯形丝杠螺母WSRM iglidurW300材料 J350SRM-7680TR40X7 4587 76 80 - 0
梯形丝杠螺母WSRM iglidurW300材料 J350SRM-90100TR50X8 7226 90 100 - 0


drylin® - 梯形丝杠螺母 - A180SRM iglidur® A180材料

梯形丝杠螺母WSRM iglidurW300材料
梯形丝杠螺母WSRM iglidurW300材料

梯形丝杠螺母 - A180SRM


尺寸 [毫米]
订单号 表面接触面积
的比例[mm²]
d2 b1 螺纹
d1 x P
最大静载荷
F轴 [N]

 A180SRM-1418TR8X1.5 205 14 18 TR8X1.5 500
 A180SRM-1812TR8X1.5 137 18 12 TR08X1.5 478
 A180SRM-2215TR10X2 212 22 15 TR10X2 742
 A180SRM-2215TR10X3 200 22 15 TR10X3 701
 A180SRM-2220TR10X2 283 22 20 TR10X2 990
 A180SRM-2220TR10X3 267 22 20 TR10X3 935
 A180SRM-2618TR12X3 297 26 18 TR12X3 1039
 A180SRM-2624TR12X3 396 26 24 TR12X3 1385
 A180SRM-3021TR14X4 396 30 21 TR14X4 1385
 A180SRM-3024TR16X4 528 30 24 TR16X4 1847
 A180SRM-3025TR20X4 707 30 25 TR20X4 2474
 A180SRM-3027TR18X4 679 30 27 TR18X4 2362
梯形丝杠螺母WSRM iglidurW300材料 A180SRM-3028TR14X3 550 30 28 - 1649
 A180SRM-3028TR14X4 528 30 28 TR14X4 1847
 A180SRM-3624TR16X2 565 36 24 TR16X2 1979
 A180SRM-3624TR16X4 528 36 24 TR16X4 1847
 A180SRM-3632TR16X2 754 36 32 TR16X2 2639
 A180SRM-3632TR16X4 704 36 32 TR16X4 2463
 A180SRM-4027TR18X4 679 40 27 TR18X4 2375
 A180SRM-4036TR18X4 905 40 36 TR18X4 3167
 A180SRM-4530TR20X4 848 45 30 TR20X4 2969
 A180SRM-4540TR20X4 1131 45 40 TR20X4 3958
 A180SRM-5036TR24X5 1216 50 36 TR24X5 4255
 A180SRM-5039TR26X5 1440 50 39 TR26X5 5039
 A180SRM-5048TR24X5 1621 50 48 TR24X5 5674
 A180SRM-5052TR26X5 1920 50 52 TR26X5 6718
梯形丝杠螺母WSRM iglidurW300材料 A180SRM-6042TR28X5 1682 60 42 - 5888
 A180SRM-6045TR30X6 1909 60 45 TR30X6 6680
 A180SRM-6056TR28X5 2243 60 56 TR28X5 7851
 A180SRM-6060TR30X6 2545 60 60 TR30X6 8906
梯形丝杠螺母WSRM iglidurW300材料 A180SRM-6060TR32X6 3134 60 60 - 10968
 A180SRM-7572TR36X6 3732 75 72 TR36X6 13063
 A180SRM-7680TR40X7 4587 76 80 TR40X7 16054
梯形丝杠螺母WSRM iglidurW300材料 A180SRM-90100TR50X8 7226 90 100 - 0


易格斯提供的梯形导向螺母选型范围非常广范
